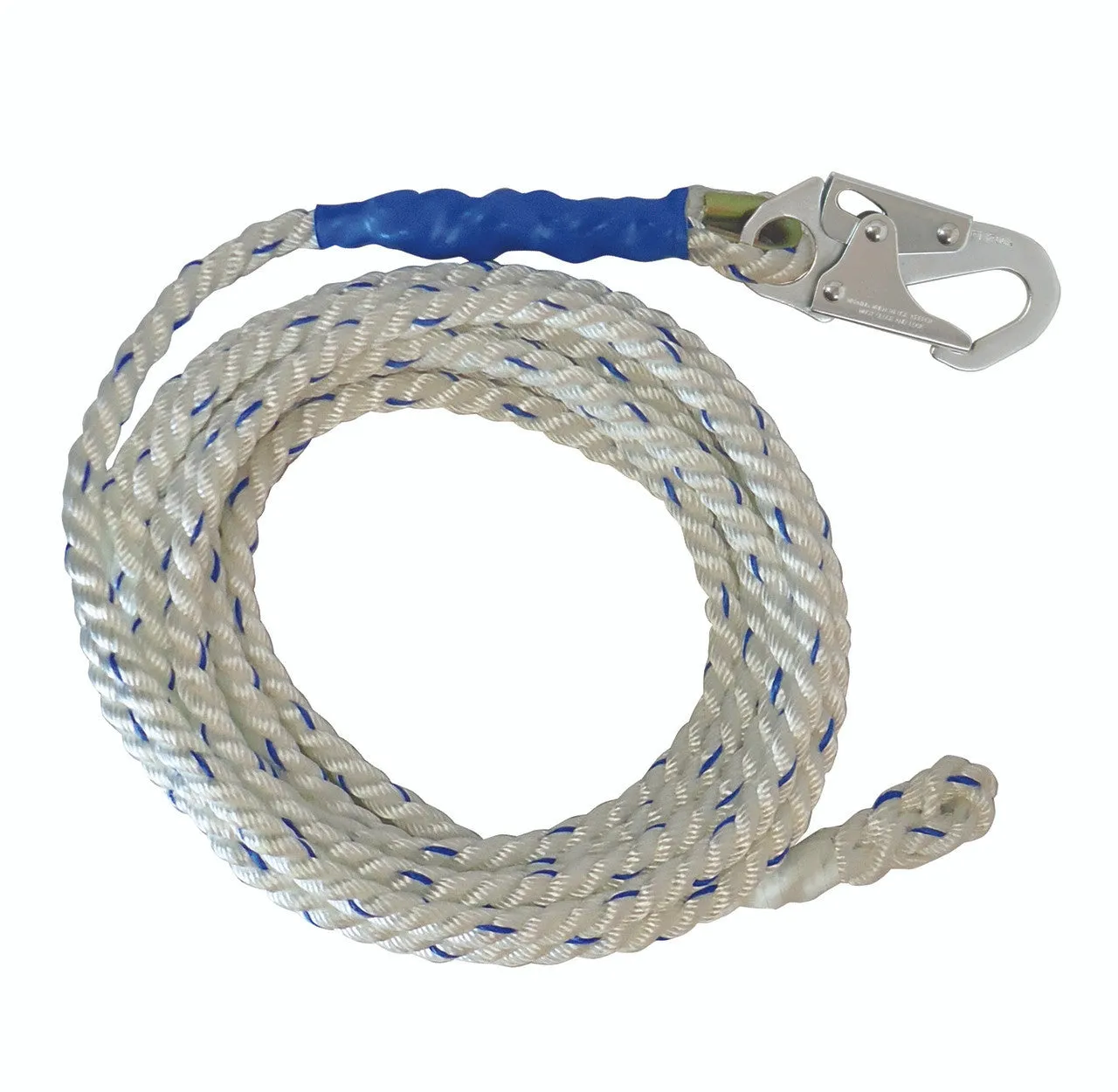

The FallTech Single Anchor Vertical Lifelines (VLL) are typically composed of a rope of various materials, lengths and end terminations. When a VLL is combined with connectors, a Shock Absorbing Lanyard (SAL), a Fall Arrester (Rope Grab), and a counterweight, it becomes a Fall Arrester Connector Subsystem (FACSS).
Features
- Constructed with 5/8" low-stretch 3-strand twisted rope
- Premium polyester blend reduces kinking and hockling
- Steel thimble and splice-protecting shrink tube are included for lasting durability
- Includes alloy steel snap hook for anchorage connection
- Back-spliced trailing end is ideally suited for pairing with hinged arresters and adjusters
Specification
- Brand: FallTech
- Product Type: Vertical Liflline
- Rope Material: 3-strand twisted polyester blend; 5,000 lb minimum
- Connector Material: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
- Thimble Material: Plated carbon steel
- Minimum Static Strength: 5,000 lb
- Maximum ANSI User Capacity: 130 to 310 lb
- Maximum OSHA User Capacity: 130 to 310 lb
- Compliant With: CSA Z259.2.5-2017, OSHA 1926.502 and 1910.66 and ANSI Z359.15-2014
